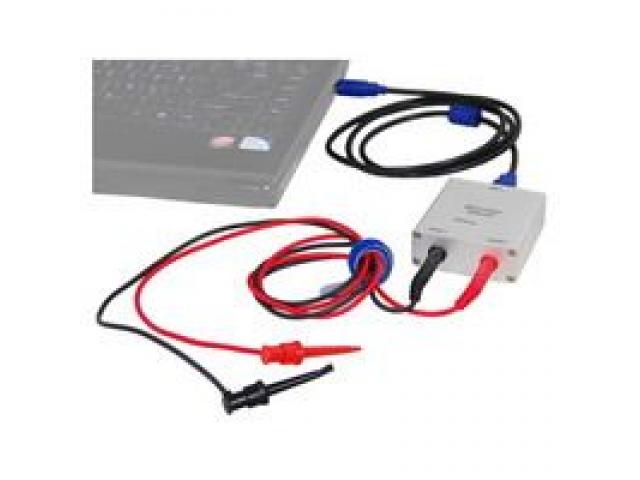

AHT520 Series HART communicator is a PC communication link to HART networks for commissioning, servicing,calibrating, or acquiring data from any Hart instrument or transmitter.
AHT520 with a friendly user interface, enables you to set and check instrument parameters such as tag numbers and ranges,outputs, and view data.

FEATURES
Compatible with HART products from multiple manufacturers
No external power supply required, using USB port from notebook/PC to power
compact size2.9'' x 2.5'' x 0.85'' (73mm x 64mm x 22mm)
Rugged Aluminum Alloy enclosure
Polarity insensitive so you may attach either one of the test clips to positive or negative poles
Standard USB Type A connector.
USB 1.1 and 2.0 compatible.
Hart communicator programming software included.

SPECIFICATION
Power supply:Power supply:
Protection:IP54
USB Interface:USB 1.1 and USB 2.0
Operating Temperature:0 deg.C to 55 deg.C
Enclosure:Aluminum alloy housing with impact-resistant performance
System Requirements:System Requirements:Windows 98 / 2000 / XP / Win7
Display:800x600 or better resolution
Hard Disk Drive:1GB space or more
Dimensions:73mm(L) X 64mm(W) X 24mm(H)=73mm(L) X 64mm(W) X 24mm(H)
weight:0.15 Kg(0.33 lb)
Standard package Include:
*ATH520 Hart Communicator * 1 set
*Mini-Grabber test clip(1.0M) * 1 pair
*USB connector(1.5M) * 1 set
*CD Rom (DTM & Driver inside) * 1set
