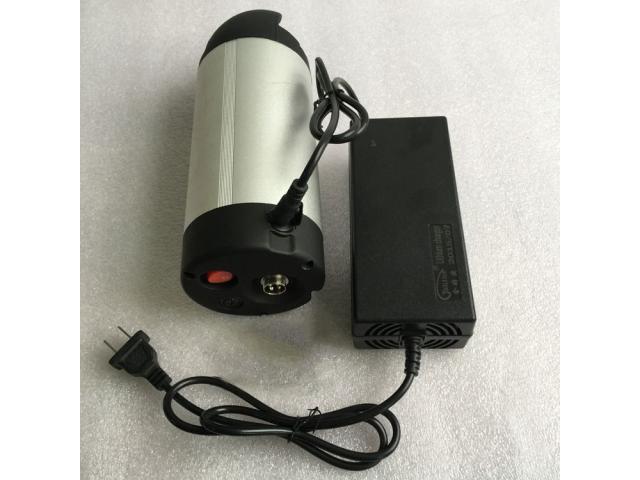

36v 20ah bottle battery pack water bottle type 36v 20ah ebike battery pack specification:
Model
Junda-J024
Chemistry
LiNiCoMnO2
Nominal Voltage
36V
Nominal Capacity
20Ah
Weight
Approx 3.5KG/4.5Kg
Outer case
water bottle case
Dimension
90*90*415mm
Standard Charge
Constant Current 0.2C, Constant Voltage 42V 100mA Cut-off

Fast Charge
Constant Current 0.5CA, Constant Voltage 42V 100mA Cut-off
Standard Discharge
Constant Current 0.2C/End Voltage 30V
Cycle Life
500 times with DOD80%
Continuous Discharge Current
20A or customized
Peak discharge current
60A or customized
BMS function
Over-Current Protection,Over-Discharge Protection, Over-Charge Protection,Short-Circuit Protection, Balance
Storage Temperature Range
Temperature: -10-40℃
Relative humidity:45-75%
Pressure: 86-106KPa
36v 20ah bottle battery pack water bottle type 36v 20ah ebike battery pack feature:
Longer life compared to Lead-Acid battery
Over-Charging safety protection
60% more energy
Over-Discharging safety protection
Up to 70% weight savings
Over-Current safety protection
Portable handdle, easy to install and remove
Short Circuit safety protection
Faster charging times
High Temperature safety protection
100% available capacity
In-built safety protection BMS
NO FIRE, NO EXPLOSIONS
Eco-friendly, no pollution.
