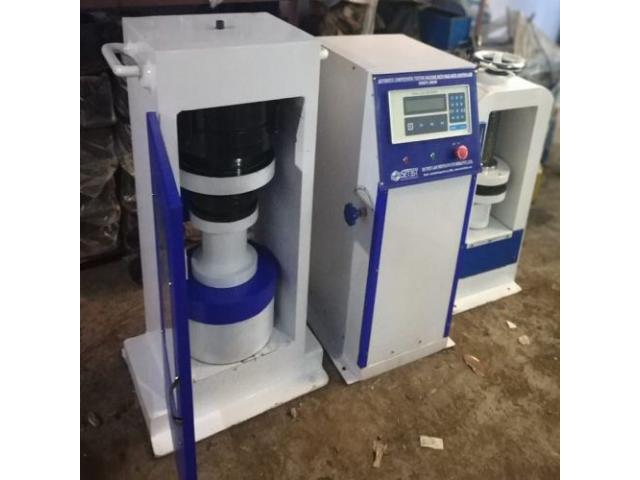

T1Z-7500 Automatic Compression Testing Machine
Price
R 14,550.00
Category
Listing ID
#45191
Viewed
701x
Publish date
August 29, 2020
Last modification
August 30, 2020
Related listings
Description
Model: T1Z- 7500
Part Number: DX001A
Capacity: 600 Kn
Dimensions (WxLxH) mm: 650 x 500 x 900
Platen Dimensions (DxH) mm: Ø165 x 40
Roughness Value of Platens: 3.2 µm
Vertical clearance: 340 mm
Piston Diameter: 150 mm
Maximum piston movement : 50 mm
Power consumption: 750 watt
Voltage: 220-240V, 50-60Hz, 1ph
Oil capacity: 20 litre
Maximum working pressure: 34 Mpa
Weight: 415 kg
Part Number: DX001A
Capacity: 600 Kn
Dimensions (WxLxH) mm: 650 x 500 x 900
Platen Dimensions (DxH) mm: Ø165 x 40
Roughness Value of Platens: 3.2 µm
Vertical clearance: 340 mm
Piston Diameter: 150 mm
Maximum piston movement : 50 mm
Power consumption: 750 watt
Voltage: 220-240V, 50-60Hz, 1ph
Oil capacity: 20 litre
Maximum working pressure: 34 Mpa
Weight: 415 kg
